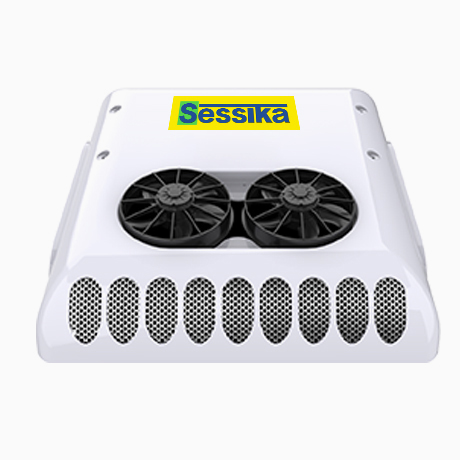

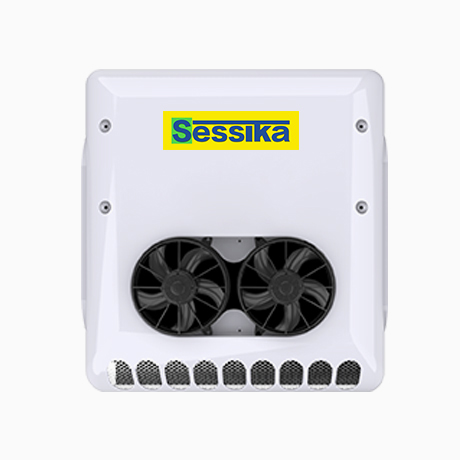

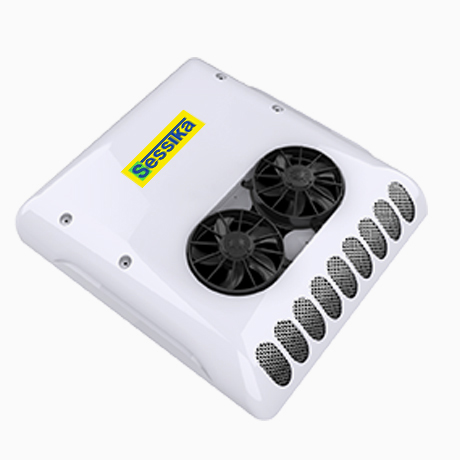

SK-5A

Rooftop unit with ceiling air return grille, and mainly for truck and agriculture machines.
System Components
FRP cover with metal base
Refrigerate receiver and dry filter
Expansion valve
GY Swash compressor
Control System
DC 12V
Digital control panel
CAN control box
ROOF TOP UNIT
Designed for vehicles up to 5-5.5 M Srinter Van
Cooling capacity 8.5 kW / 29,000 Btu/h / 7,300 kcal/h
Evaporator air flow 2000 m3/h
Condenser air flow 3200 m3/h
Dimension (l x w x h) 1068 × 980 × 210 mm
Power consumption (12V) 40 A
Max ambient temperature 50 °C
EVAPORATOR
Type Hydrophilic aluminum foil with internal ridge copper tube
Blower motor 3-Speed centrifugal type
No. Of blower motor 2 Pcs
CONDENSER
Type Micro-channel heating exchanger
Fan motor Axial type
No. Of fan motor 2 Pcs
COMPRESSOR
Brand Valeo
Model TM-16
Displacement 163 cm³ ⁄ rev
Compressor oil type ZXL 100PG PAG OIL (180 cm³)
Compressor weight 4.9 kg (w/o clutch)
